Robotics Solutions
AMR
Supplier of full-scenario intelligence with software systems platform
Meet Hikrobot, our partner that offers smart mobile robotic products and systems that we can integrate into your existing warehouses or new warehouses to be designed from scratch.
FMR
F3-1500
Forklift Mobile Robot
FMR focuses on the automatic transfer of standard bins/pallets. It adopts high precision laser SLAM navigation, vision navigation, etc.
| Dimension L*W*H (mm) | 1632*870*1990 |
| Rated Speed (m/s) | 1.5 |
| Safety Protection | Lase + physical obstacle avoidance |
| Position Accuracy (mm,°) | ±10,±1 |
| Charging Time (h) | ≤2 |
| Run Time (h) | 6-8 |
1500
Rated Load (kg)
200
Max Lifting Height
(mm)
2.1
Min Aisle Width (m)
25/25
Lifting Speed
(Loaded/No-load) (mm/s)
Laser SLAM
Navigation
Steering wheel driving
Movement Mode

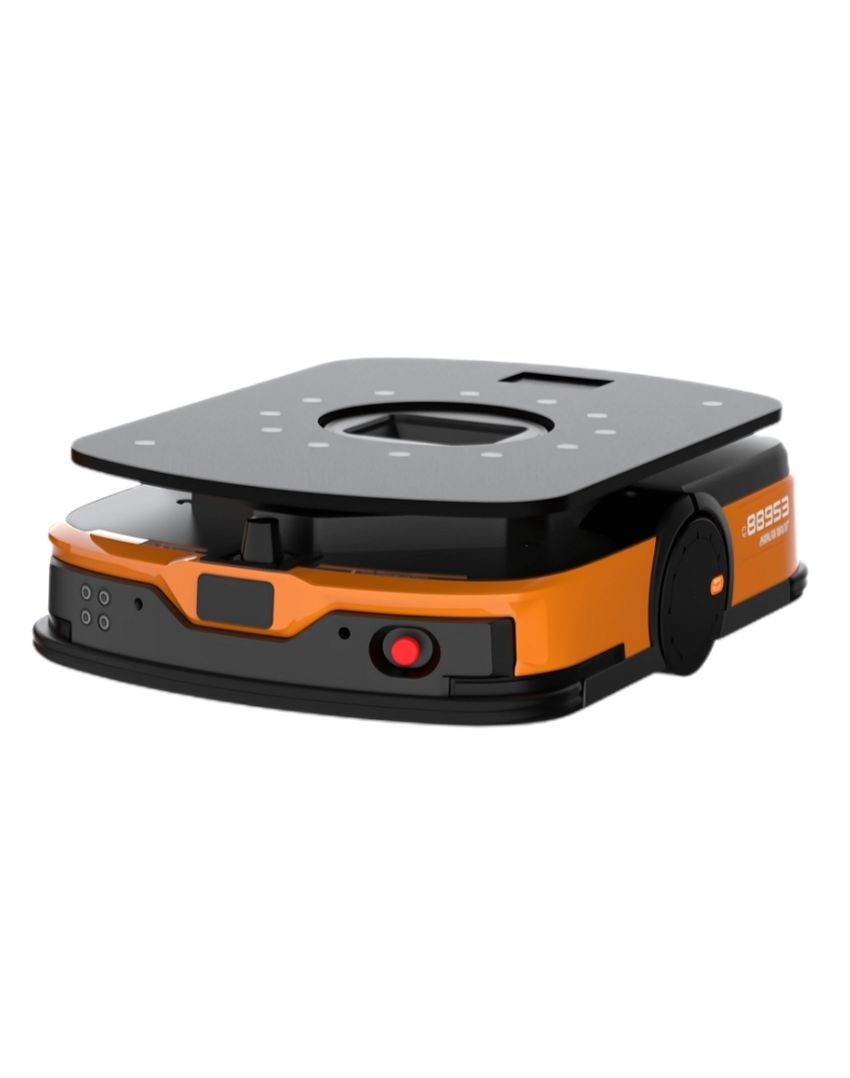

LMR
Q3-600D
Latent Mobile Robot
Characterized by its lifting mechanism, LMR (Latent Mobile Robot) has an optimized motion performance and enhanced safety protection. It helps customers create a safer working environment and more cost-effective productivity.
| Dimension L*W*H (mm) | 950*650*250 |
| Rated Speed (m/s) | 2.0 |
| Max. Rotation Speed (°/s) | 200 |
| Positioning Accuracy (mm,°) | ±10,±1 |
| Charging Time (h) | 1.5 |
| Driving Mode | Differential Drive |
60
Lifting Height (mm)
132
Weight (kg)
600
Rated Load (kg)
995
Rotation Diameter (mm)
QR Code/…
Navigation
8
Run time (h)

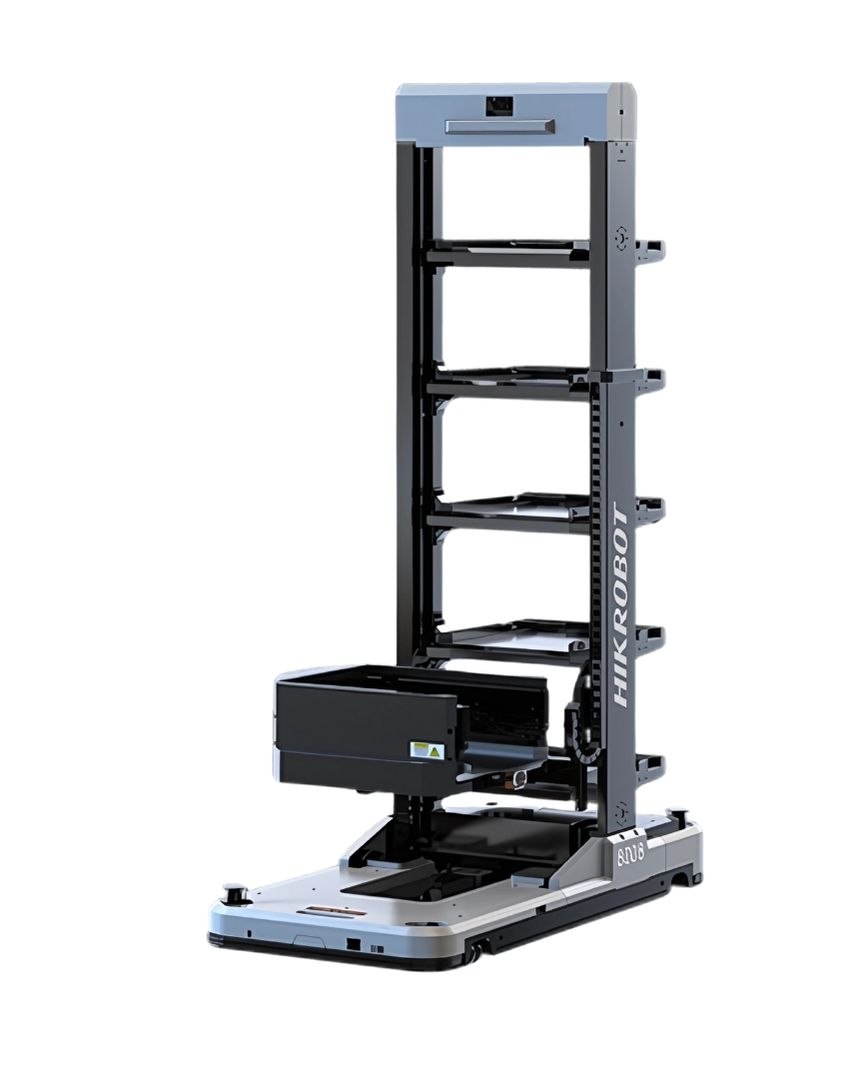

CTU
F0-50DC
Carton Transfer Unit
CTU (Carton Transfer Unit) is an automated unmanned picking and handling robot. It can transfer multiple goods simultaneously which improves the picking efficiency and storage capacity.
| Dimension L*W*H (mm) | 1730*850*2600 |
| Weight (with battery) (kg) | 605 |
| Rated Speed (m/s) | 1.5 |
| Adaptable Tote Dimension (mm) | (200-620)*(200-450)*(120-360) |
| Charging Time (h) | ≤2 |
| Run time (h) | 6~8 |
250
Rated Load (kg)
5
Bin Number
1000
Aisle Width (mm)
500
Max. Lifting Speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
280~2087
Docking Height (mm)
CMR
C3-200LB2
Conveyor/Heavy-duty Mobile Robot
With self-developed multiple lifting components, Hikrobot CMR/HMR (Conveyor/Heavy-duty Mobile Robot) series can fulfill automatic docking requirements in various scenarios.
| Dimension L*W*H (mm) | 1250*745*935 |
| Transferred Method | Rollers |
| Weight (kg) | 350 |
| Angular Accuracy (°) | ±1 |
| Positioning Accuracy (mm) | ±10 |
| Run time (h) | 8 |
200
Rated Load (kg)
1.2
Rated Speed (m/s)
SLAM
Navigation
0.5
Rated Acceleration (m/s²)
1415
Rotation Diameter (mm)
360° Laser+Auxiliary protection
Obstacle Avoidance
Forklift Mobile Robot
Peak Porter LMR Video
Carton Transfer Unit
Forklift Mobile Robot
Four-Way Pallet Shuttle Solutions
R-bot
Four-Way Pallet Shuttle
R1500B ｜ R1200E ｜ R1200A｜ R1500J｜ R2000B
The R-bot Four-Way Shuttle is a smart storage robot designed for “pallet-to-person” dense storage systems. It boasts four-way flexible maneuvers, smart autonomous handling, multi-vehicle collaborative operation and other benefits. It is flexibly adaptable to dense storage scenarios in various industries by working in conjunction with elevators, conveyors, robotic arms and other devices.
Peak Porter Four-Way Shuttle Showroom

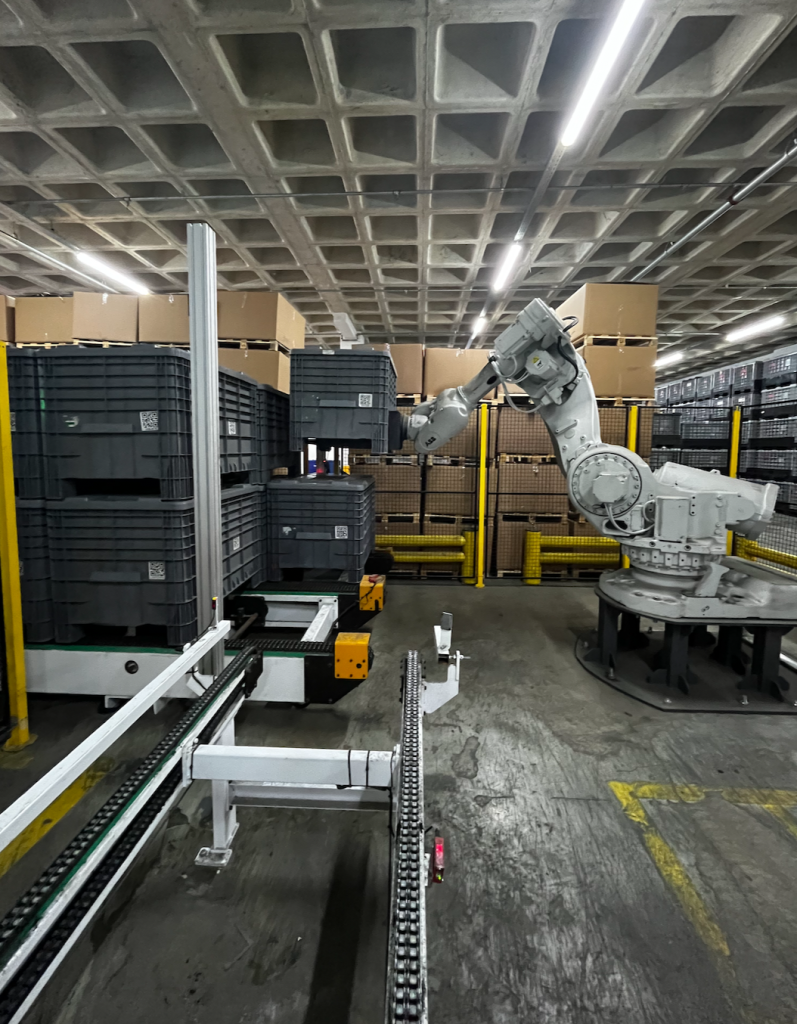

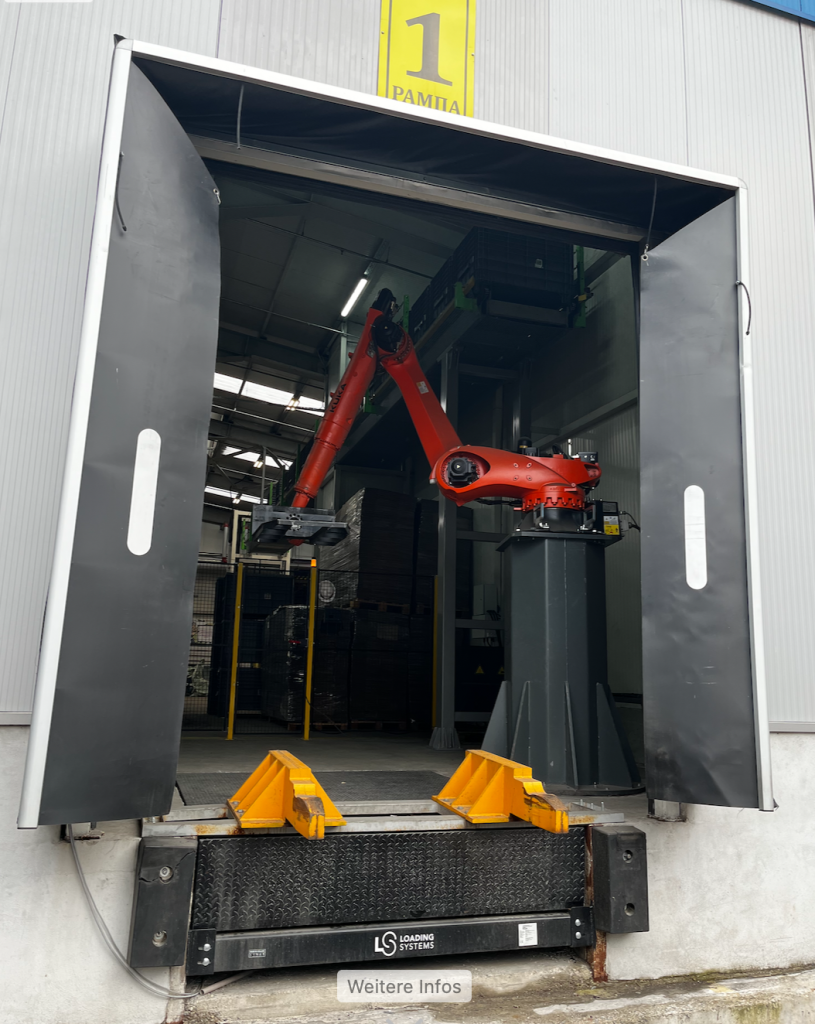

6-Axis Robot Solutions
6-axis robots can be integrated into production, warehousing and shipping processes. Thanks to our WMS software, these robots can work in synchronization with storage components, providing maximum efficiency in routine operations.
Thanks to their high payload capacity and long reach, these robots are one of the most efficient elements in automated warehousing and production processes.
- Flexibility and Mobility
- Wider Workspace
- High Precision and Repeatability
